Quick Details

• Use: Other Trailers

• OEM No: CIMC trailer

• Max Payload: 30T

• Size: 10650*2500*3350mm

• Place of Origin:Shandong, China (Mainland)

• Brand Name:CIMC

• Model Number: ZJV9456RJFT

• Product name: CIMC

• Material: Steel

• Axle brand: FUWA Brand 13TON Axle

• Certificate:TS16949

Dimension:

Length: 11,800 mm
Width: 2,485 mm  (including mud guard)
Height: 3,600mm @ unload
King Pin Location: 1,000 mm from the front face of the front bolster (No confirm).
Axle spacer: 7,400mm 1,400mm
Fifth Wheel Height: 1,280mm with the chassis level (No confirm).
Landing Gear location: 2420mm behind the king pin location

Weight:

Tare weight(Tolerance 0~-4%) : approximate 10,800KG
Pay Load  :  31,700KG
G..V.W.R  :  42,500KG
King Pin Distribution: 16,750KG
Axle Group Distribution: 26,950KG

Running Gear

King Pin:  2" exchangeable king pin, supplier & type: JOST KZ1010.
Landing Gear:  2 speed road side winding with sand shoe. Lifting capacity 23T and static load 72T. Type: JOST A400, left operating.
Suspension:  Single point suspension.16 pieces Springs. Axle Trac:1400mm.
Axles: 150x150 square axle with 15 tons capacity. Brake: S420x180, Wheel fitting 10xM22x1.5 ISO/ PCD335/281. Supplier & type: FUWA. Made in China..
Option: Supplier & type: YORK. Made in China. Option by Factory.
Rims:  9.0×22.5, 10 Holes ISO, 8 pieces.
Tires:  12R22.5 , 8 pieces. China Famous Brand. Option by Factory.
Brake System:  Dual air brake system, WABCO relay emergency valve, none ABS brake system
Brake Chamber: 30/30 type on the rear axle, 30 type on the  front axle
Electrical System: 24 volt lighting system with modular wiring harness, 7 pole plug
Tail/Stop light: Red.
Rear turn signal light: amber
License light: white
Side Maker Lamp: Amber.

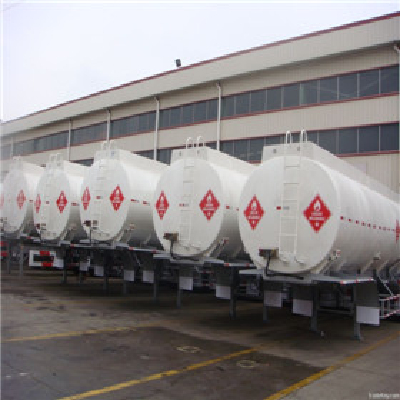

Tank:

Volume:  35000LT 5%, Vapor Volume for semi  trailer
Three compartments: 2350L/20000L/15000L
Plus outside fitted fuel tank 2350L capacity situated inside the main tank at the front of the tank with proper inlet (16" diameter manhole) and outlet (a ball-type discharge valve and a thread coupling, made in CHINA, lies to roadside.).
Tank material: steel plate Q345A, the thickness of the shell is 5mm approx.
Dish ends and bulkhead: dished and flanged, steel plate Q345A, thickness are 5mm approx, and baffles are 4 mm approx,steel plate Q235A.
Shape of tank: Ellipse, double "D"
Plate dealing: Outer surface paint. Color according to the customer's requirement. Internal antistatic coating.
Test pressure designed:36kpa.

Tank Accessories and fitting :

16" diameter manhole pre compartment.
Each compartment has a 4" foot valve, pneumatic operation.
Each compartment has a 3" steel pipe line.
At the middle of the tank, each compartment with a 3" ball-type discharge valve and a  male coupling (To be determined), lies to roadside.
At the rear of the tank, a detachable ladder is provided.
A chequered plate walkway is installed on top of the tank made of antiskid plate.
Each compartment has a measurement ruler. According to the regulation of Chinese metrology department, the measurement ruler for fuel tanker semitrailer should be calibrated above 70% of the tank volume and below 70% the ruler doesn't need be calibrated. From 70% to 85% of the tank volume, we can calibrated the ruler and it can reach 300 liter/step. And above 85% of the tank volume, we can make the precision of the measurement ruler reach 100 liter/step. (calibrated by CIMC)
Expansion valve: non.
Without Pump
Others:
Spare Tire  Carrier: Equipped one set per chassis without spare tire.
Side Guard: Steel material Side Protection.
Extinguisher: Two dry powder fire extinguisher of 8 kg . capacity .
Water Tank: One 20L Water Tank made of plastic for non drinking water.
Tool Box: Equipped one set without tools, Located in rear.
Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no , dead weight , year of manufacturing etc. to be fitted
Painting: Color by customer's requirement.
Two external hose carries rectangular shaped with small doors, 5.3 miters long.
Copper earthling bar provided not painted.
