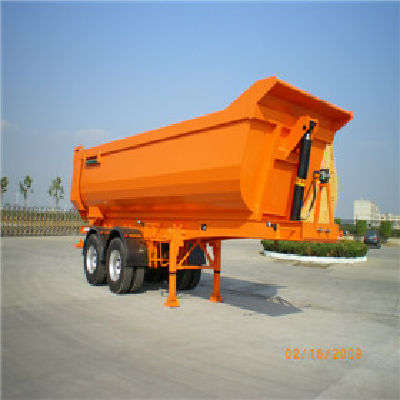

Quick Details

• Use: Truck Trailer

• Type: Semi-Trailer

• Material: Iron

• Certification: TS16949

• Size: 8921mm*2500mm*3148mm

• Max Payload: 60T

• Place of Origin: Shandong, China (Mainland)

• Brand Name: CIMC QINGDAO

• Model Number: ZJV9392ZUJT

• Axle: FUWA Brand

• Tire: 11.00R20

• Landing Gear: JOST

Packaging & Delivery

Body:

Side wall: 4mm

Floor: 6mm
Inner dimension: Approx 7,737 mmx2,310mmx 1,400 mm

Material: High tensile steel choose by factory

Weight:

Tare Weight (Tolerance 0~-4%): Approx 8,500 kg

Max Payload: Approx 30,000 kg

Gross Vehicle Weight: Approx 38,500 kg

OEM Parts Configuration:

King Pin: 2”bolted king pin. Brand: JOST. Made in China.

Landing Gear: SAF-HLD 30T, 19”

Suspension: American type mechanical suspension with equalizers 8-leaf spring

Axles: 13 tons capacity × 3, FUWA

Rims: 8.0V-20, equip 13 per chassis

Tires: double coin, type: 11.00R20-18PR, RLB , equip 13 per chassis

Brake System: Dual air brake system, WABCO relay valve, without ABS

Brake chamber: Type 30/30 on the all axles.

Electrical System: 24volt lighting system, 7-way receptacle, ISO standard.

Hydraulic system: Brand & Type: HYVA FE 196 with all the hydraulic kits including the oil tanker, Valve, connecting pipe, b ut not provide the PTO. Customer needs modify the Truck tractor by themselves for whole vehicle operation. HYVA FE 196 must be capped tobe protected.
