- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC

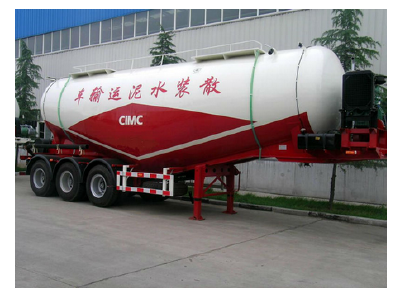

- Model Number: Qingdao CIMC bulk cement tank trailer
- Weight: 6000.000 kg
Specifications
overall dimension parameters | Total length (mm) | 10095 | ||
Total width (mm) | 2500 | |||
Total height (mm) | 3990 | |||
Wheel base (mm) | 5100 1310 1310 | |||
Tread (mm) | 1830 | |||
Overall dimension (mm) | 10095*2500 | |||
Kerb mass | 9000KG | |||
Through-put capacity | front fitting radius | 2000 | Rear overhang | 1090 |
clearance radius | 2200 | Angle of departure | 28 | |
Min. turning diameter | 24 | Min.ground clearance | 360 | |
Chassis parameter | Item | Standard configuration | Optional | |
Axles | FUWA brand,13T , 3axles | |||
Towing pin | 90# or 50# | |||
Support leg | 28T, linkage legs | |||
suspension | Steel spring suspension | |||
Rim | Rishang brand, 8.00-22.5, 13 sets | |||
tyre | 12.00R22.5-16PR , 12 1 | |||
Brake system | dual circuit air brake | |||
Electric system | 24V, minus earth(connect with tractor) | |||
Pressure tank | None | 280L | ||
ABS | ( 4S/2M,Made in China | |||
Tank parameters | Item | Standard configuration | ||
Actual volume ( m3 ) | 35 | |||
Tank dimension (mm) | 10148*2500*1950 | |||
unloading speed ( m3/min ) | ≥1.2 | |||
discharge residue rate ( % ) | ≤0.3 | |||
Rated pressure(Mpa) | 0.2 | |||
Tank mouth | One compartment with two tank mouth | |||
air compressor | 10.0m³ /min | |||
Diesel engine | Weichai 4100 | |||
