Quick Details

• Use:Truck Trailer

• Type:Semi-Trailer

• Material:Steel

• Certification:ISO

• Size:45FT

• Max Payload:50 tons

• Place of  Origin:Shandong, China (Mainland)

• Brand Name:CIMC

• High Quality:Blue

Packaging & Delivery

Specifications

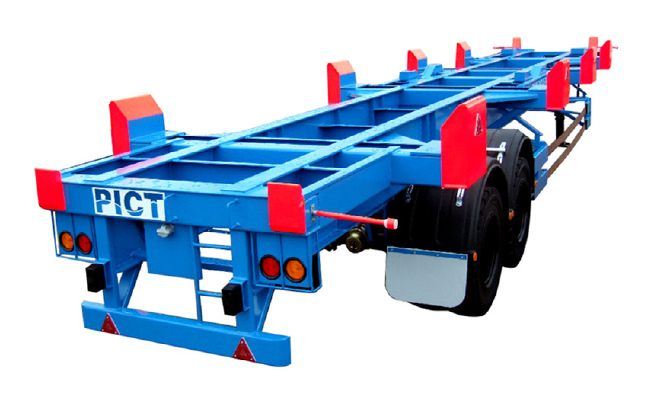

Yard trailer
High quality, More Safety

Yard Trailer

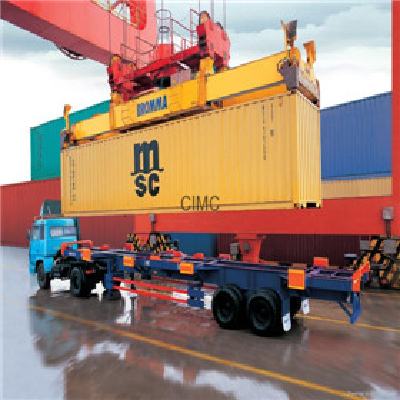

is designed and manufactured to transport 1x20, 2x20, 1x40 and 1x45 ISO containers within port terminal areas.

Dimension:

Length: Approx 14, 136 mm
Width: Approx 2, 810 mm
Height: Approx 1, 690 mm
Inner Length: 13, 766 mm
Inner Width: 2, 460 mm

Weight:

Tare Weight (Tolerance: 0~4%): Approx 7, 400 kg
Max. Payload: 50, 000kg
GVWR: Approx 57.000kg

Steel Structure:

Material: High strength low alloy steel Q345 with 350 Map yield strength is used for welded I-beam and Q235 in other fabricated parts.

OEM Parts Configuration:
King Pin: SAE standard 2 welding king pin, Supplier: JOST Made in China.
Landing Gear: JOST A400/ JOST China, static load: 72 tons; Lift capacity: 23 tons

Suspension: Heavy duty tandem mechanical suspension with12 leaf spring. (90mm width by 13mm thickness / leaf) Fasteners for radius rods and equalizers will be installed with nuts to the outside. Springs will be fastened to the axle using U-bolts with nuts facing downward.
Axles: Axle with 16 tons capacity. Famous Brand: YORK Made in China.
Rims: 8.0-20.
Tires: 11.00 - 20 Solid rubber tire, 8 pieces; China Famous Brand
Brake System: Dual or single pneumatic brake system; WABCO relay emergency valve, none ABS brakesystem.
Brake Chamber: 30/30 type on the rear axle, 30 types on the front axle
Electrical System: 24 volt lighting system with modular wiring harness.

Others:

Reflector: 2-Nos triangle shaped Red Reflectors at Rear. 10 pieces Reflectors strip (Conspicuity tape) each side.
Mudguards: PVC withCIMCmaking, 2 pieces.
Marking: Qingdao CIMC Special Vehicle Co., Ltd. Standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. To be fitted
Painting: The Color is made by customers requirement
