Quick Details

• Use:Truck Trailer

• Type:Semi-Trailer

• Material:Steel

• Certification:Other

• Brand Name:CIMC

• Place of Origin:Shandong, China

• Max Payload:30000KG

Packaging & Delivery

Delivery Detail:two units container or in bulk

Specifications

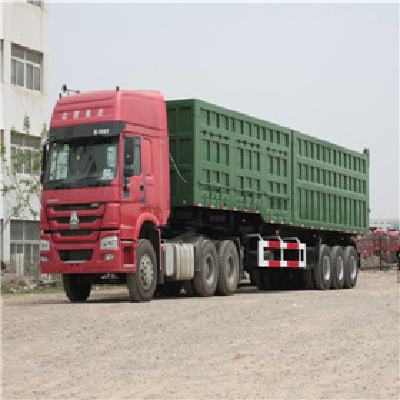

Dump traier with tri-axle

Dimension:

Length: Approx 8,585 mm

Width: Approx 2,490 mm(including mud guard)

Height: Approx 3,315mm @ unload

Capacity: 26 CBM

Weight:

Max. Payload: Approx 30,000 kg

OEM Parts Configuration:

King Pin: 2 bolting king pin. Brand: JOST. Made in China.

Landing Gear: Two speed road side winding with sand shoe. Type: JOST D200T.  Made in China.

Suspension: Mechanical suspension with equalizers 8-leaf spring, Made in China.

Axles: 150x150 square axle with 13 tons capacity. Brand: FUWA Made in China.

Rims: 9.0-22.5,12 pieces. steel, Made in China.

Tires: 12.000R22.5, 12 pieces.  Made in China.

Brake System: Dual air brake system,  None ABS brake system.

Brake chamber: Type 30/30 on the rear two axles,Type 30 on the first axle.

Electrical System: 24 volt lighting system, 7-way receptacle, Chinese standard.

Hydraulic system: 4 stage cylinder installed on the chassis in the front of carriage box , Brand & Type: HYVA,,Made in China.
