Quick Details

• Use:Other Trailers

• Place of Origin: Shandong, China (Mainland)

• Brand Name:CIMC

Packaging & Delivery

Packing Details:in bulk or by container in SKD form

Specifications
1.High tensile steel

2.Lower price,high quality
3.Less weight more load.
4.Well packed to save freight

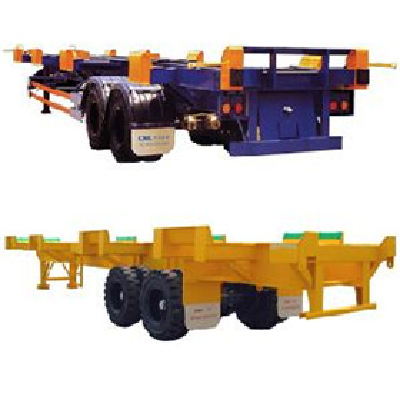

Yard chassis
Specifications:

1) Dimensions and weight:

A) Nominal dimensions (L x W x H): 14, 150 x 2, 740 x 1, 600mm.

B) King pin height: 1, 100mm c) King pin setting: 1, 100mm from rear face of front bolster

D) Max. Payload: 57, 000kg e) Tare weight: 7, 000kg± 2%

2) Running system:

A) Suspension system: Any kind

B) Axle: Various axles like BPW, YORK and FUWA with various bearings

D) Tire: Various brands of bias tires or radial tires

E) King pin: Forged steel, 2" or 3.5", welded or bolt-in

F) Landing gear: 24T, 25T

3) Chassis:

A) Heavy duty construction

B) Main beam: High-tensile steel

C) Surface preparation: Shot blast

E) Painting: Zinc-rich primer and modified urethane topcoat as customers' choices
4) Brake system:

A) Optional double line air brake system with single air tank, standard connectors on front bolster

B) Optional anti-lock brake system are available

5) Electrical system: Standard electrical equipment

Features:

1) Heavy duty construction

2) All major structural steel parts of high-tensile steel

3) Entire chassis shot-blasted.

4) Paint system comprising zinc rich primer and urethane topcoat paint.
