- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC
- Model Number: Qingdao CIMC 35CBM Tipping Trailer
- Weight: 6000.000 kg
Quick Details
Use: Other Trailers
Max Payload: 35T
Size: 10990*2498*3541
Place of Origin: China (Mainland)
Brand Name: CIMC
Packaging & Delivery
Packaging Details: | CKD by containers or in bulk |
Delivery Detail: | 45 days after down payment received |
Specifications

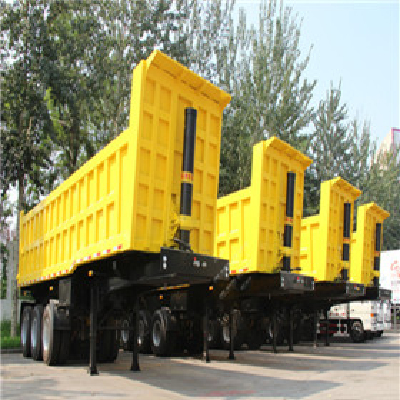

The tipping trailer is designed for transporting all kinds of loose cargos and other materials.
Length: Approx 10,990 mm
Width: Approx 2,498 mm(including mud guard)
Height: Approx 3,541mm @ unload
King Pin Location: Approx 950mm from the front face of the front bolster
Axle spacer: Approx 6,050 mm 1350mm
Landing Gear location: 2,550 mm behind the king pin location (no confirm)
Fifth wheel (King Pin) Height: Approx 1,271mm with the chassis level(no confirm)
Capacity: 35CBM
Tare Weight (Tolerance 0~-4%) : Approx 11,400 kg
Max. Payload: Approx 35,000 kg
Gross Vehicle Weight: Approx 46,400 kg
Material: High strength low alloy steel (700 MPa) and (350 MPa)is used for welded I-beam and (235MPa) is used for welded fabricated parts.
Carriage box : All welded steel structure, flooring thickness 6mm, Side & front wall thickness 4mm re-enforced, with full welded stiffeners. Tail door is top hinged with spring loaded auto locking device.
Electrical System: 24 volt lighting system, 7-way receptacle, Chinese standard.
Hydraulic system: 4 stage cylinder installed on the chassis in the front of carriage box , Brand & Type: HYVA,,Made in China.
