Quick Details

• Use:Truck Trailer

• Type:Semi-Trailer

• Material:Steel

• Place of Origin:Shandong, China (Mainland)

• Brand Name:CIMC, CIMC

• Max Payload:50T-100T

Specifications

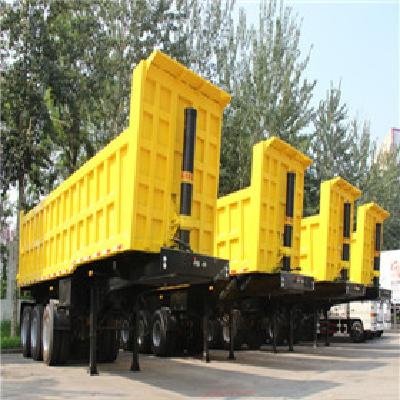

Dump trailer truck.Can be modified as per customers' requirements.2 axles or 3axles;24CBM,36CBM,40CBM.....

The tipper trailer is designed for use in stevedoring and transporting of the crushed stone ,soil, coal and earth materials.

Dimension:

Length: 11,009 ± 10 mm

Width: 2,500 mm  (including mud guard)

Height: 3,450mm @ unload(No confirm)

King Pin Location: 1,000mm from the front face of the front bolster (No confirm).

Axle spacer: 5,180mm 1,350mm 1,350mm for 3 axles

Fifth Wheel Height: 1,320mm with the chassis level (No confirm)

Landing Gear location: 2,485mm behind the king pin location (No confirm)

(The above dimension will be adjusted according to the tractor specification. )

Weight:

Tare Weight (Tolerance 0~-6%):  approximate 11,500 kg

Max. Payload: 50,000 kg

GVWR: 61,500 kg

Tipper Body:

Inside Dimension: 10,000mm×2,300mm×1,700mm(L×W×H)

Volume: approximate 40 Cubic Meter

Floor: In 8mm steel

Side doors and Front board: In 4 mm steel.

Tipping Cylinder: 4 stage front lifting hydraulic system, 1 piece, Made in China
