Qingdao CIMC 3 axle dump trailer

Qingdao CIMC 3 axle dump trailer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100000 Sets per Year
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2004-11-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  12500*2500*1550
  • Place of Origin:  Shandong Qindao
  • Brand Name:  CIMC
  • Model Number:  Qingdao CIMC 3 axle dump trailer
  • Weight: 6000.000 kg

Quick Details

  • Use:Truck Trailer

  • Type:Semi-Trailer, Semi-Trailer

  • Material: Steel, Steel/Aluminum/

  • Size:10,990, 2498, 3540

  • Max Payload:40000kg

  • Place of Origin: China (Mainland)

  • Brand Name:CIMC

  • Color: As per order

Packaging & Delivery

Packaging Details:

each uint/bundle as bulk or   CKD(SKD) load in the containers.

Delivery Detail:

40 days after received DP

Specifications

Automatic welded longtitudinal beam, high strength steel frame in weight-optimised lightweight design

Specifications

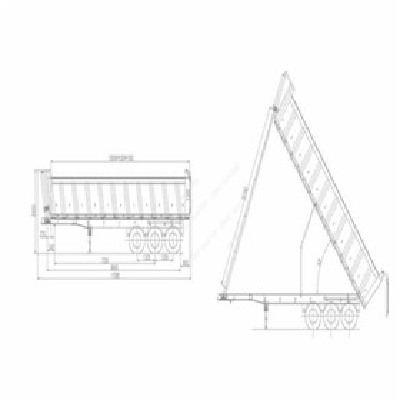

DIMENSION

Length: Approx 10,990 mm

Width: Approx 2,498 mm(including mud guard)

Height: Approx 3,541mm @ unload

King Pin Location: Approx 950mm from the front face of the front bolster

Axle spacer: Approx 6,050 mm 1350mm 1350mm

Fifth wheel (King Pin) Height: Approx 1,271mm with the chassis level(TBD)

Capacity: 35CBM

(The above dimension will be adjusted according to the tractor specification.)

WEIGHT

Tare Weight (Tolerance 0~-4%) : Approx 12,500 kg

Max. Payload: Approx 40,000 kg

Gross Vehicle Weight: Approx 52,500 kg

BODY

Material: High strength low alloy steel (700 MPa) and (350 MPa)is used for welded I-beam and (235MPa) is used for welded fabricated parts.

Cargo box : All welded steel structure, floor thickness 6mm, Side & front wall thickness 4mm re-enforced, with full welded stiffeners. Tail door is top hinged with spring loaded auto locking device.

OEM Parts Configuration

King Pin: 2” bolting king pin. Brand: JOST. Made in China.

Landing Gear: Two speed road side winding with sand shoe. Lifting capacity is 50ton,static capacity is 80ton,Type:HOLLAND HLD30. Made in China.

Suspension: American type mechanical suspension with equalizers 8-leaf spring(Width 90mm* Thickness16mm ), Made in China.

Axles: 150x150 square axle with 13 tons capacity . Brake: S420x220, Wheel fitting 10xM22x1.5 ISO/ PCD335/281.American Type, choose by the factory . Made in China

Rims: 8.25-22.5 , 12 pieces. 10 hole Steel rim, Made in China.

Tires : 11.00R22.5, 12 pieces. Chinese famous brand. Made in China.

Brake System: Dual air brake system, WABCO relay valve, none ABS brake system.

Brake chamber: Type 30 on the front axle, type 30/30 on rear two axles.

Electrical System: 24volt lighting system, 7-way receptacle, ISO standard.

Hydraulic system: Brand & Type: HYVA .5 stages cylinder installed on the chassis in the front of carriage box , FE191-5.CIMC will provide all the kit of the hydraulic include the oil tanker, Valve, connecting pipe. Without PTO.





  • Size:  12500*2500*1550
  • Place of Origin:  Shandong Qindao
  • Brand Name:  CIMC
  • Model Number:  Qingdao CIMC 3 axle dump trailer
  • Weight: 6000.000 kg
