- Size: 12500*2500*3600mm
- Place of Origin: SHANDONG
- Brand Name: CIMC
- Model Number: ZJV9403QD
- Weight: 8000.000 kg
Product Specifications

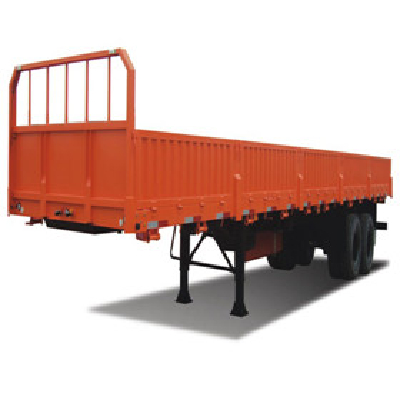

type | 12.5M Three-axle Dropside Semi Trailer | |
Model | ZJV9403QD | |
parameter | dimension(mm) | length×width×height:12480×2566× H (The height will be adjusted according to the tractor specification ） |
dropside height(mm) | 600 | |
king pin setting(mm) | 1000 | |
fifth wheel height(mm) | The height will be adjusted according to the tractor specification | |
axle space(mm) | 6550 1310 1310 | |
tare weight （ kg ） | 8,000 | |
payload （ kg ） | 50,000 | |
GVWR （ kg ） | 58,000 | |
Fabric | main beam(mm) | 500,submerged arc welding |
flange and web(mm) | 16/10/18 | |
Lock | 12 units. | |
Floor | 2.5mm checker plate | |
Paint | primer top coat, polyurethane paint | |
OEM | landing gear | CIMC 30T |
Kingpin | 3.5”JOST ,exchangeable | |
brake system | 30/30 type on each axle,WABCO brake valve | |
ABS | No | |
Suspension | Front axle:air suspension,can lift;Rear two axles:Mechanical suspension with 8 leaf spring | |
Axle | FUWA 13T, ISO10 Holes | |
Tire | Linglong Brand, type: 12.00R22.5 , equip 13 per chassis | |
Rim | .0*22.5, ISO10, equip 13 per chassis | |
tool box | 1 set, steel box,1m | |
spare tire carrier | 2 units per chassis | |
color | Following customer’s request. | |
others | l “LONG VEHICLE” sign on the rear end. l LED lights ， equip side turn light. l Nameplate:English model l Side Guard: Standard. | |
