HOT SALE!!! CIMC 60T Three Axle Low Flatbed Semi-trailer

HOT SALE!!! CIMC 60T Three Axle Low Flatbed Semi-trailer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100000 Sets per Year
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2004-11-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  13000*3000*1550
  • Place of Origin:  Shandong Qindao
  • Brand Name:  CIMC
  • Model Number:  ZJV9405TDPQD
  • Weight: 6000.000 kg

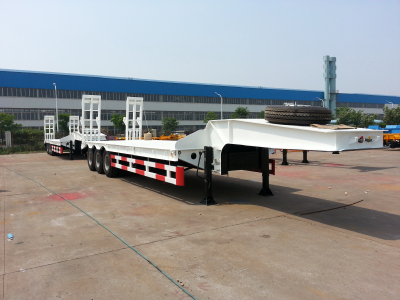

CIMC 60T Three Axle Low Flatbed Semi-trailer

Type

60T Three Axle Low Flatbed Semi-trailer

Model

ZJV9405TDPQD

parameter

dimension(mm)

length×width×height:13000×3000× H ( The height will be adjusted according to the tractor specification)

Length of Loading Platform(mm)

approximate 8,765mm

Height of Loading Platform(mm)

approximate 1,255mm

king pin setting(mm)

560

fifth wheel height(mm)

The height will be adjusted according to the tractor specification

axle space(mm)

8480 1310 1310

tare weight

approximate 11,000

payload

60,000

GVWR

71,000

fabric

main beam(mm)

520

Floor

4mm checker plate 4mm

Hook and Pull ring

4 cast steel hooks and 3 pull ring on each side of the platform

Paint

primer top coat, polyurethane paint

OEM

landing gear

CIMC 30T ,option by CIMC factory    CIMC 30T

Kingpin

3.5”JOST ,exchangeable

brake system

Dual air brake system,30/30 type on each axle,WABCO brake valve

ABS

No

Suspension

Mechanical suspension with 8 leaf

Axle

FUWA 13T,3units, ISO10 Holes

Tire

Linglong Brand, type: 11.00R20,equip 13 per chassis

Rim

8.0-20, equip 13 per chassis

tool box

1 set  steel box,1m

spare tire carrier

1 units per chassis

color


Following the customer’s requirement

others


        l “LONG VEHICLE” sign on the rear end. “LONG VEHICLE”

        l LED lights  equip side turn light. LED 灯,

        l Main beam: stick “ CIMC QINGDAO ” logo"CIMC QINGDAO ”

        l Mudflap:stick" CIMC

        l Nameplate:English model


  • Size:  13000*3000*1550
  • Place of Origin:  Shandong Qindao
  • Brand Name:  CIMC
  • Model Number:  ZJV9405TDPQD
  • Weight: 6000.000 kg
