Quick Details

·         Use:Trailer Parts

·         Type:Semi-Trailer

·         Components:Trailer Axles

·         Material:Steel

·         Place of Origin:China

·         Brand Name:CIMC

·         Max Payload:40-50Tons

·         Design:advanced

Packaging & Delivery

Packing Details:1:Bulk packing with steel wire and winch or with 45’H container

Specifications

1. Tool box is designed with lock;
2. Have side defender for protection

Descriprions of Production:

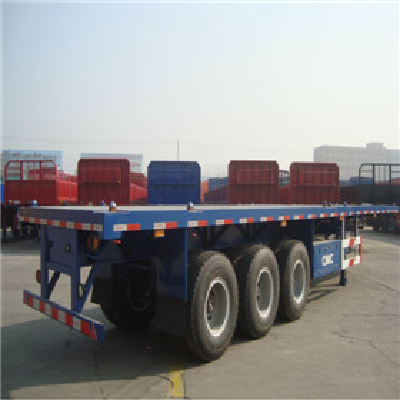

The Flatbed semi-trailer is designed for use in stevedoring and transporting of 1x20 ft,2x20ft;1x40ft ISO cargo containers and bulk cargos.

1)Dimensions and weight (can be adjustable based on need):

2)Running system:

a)Suspension system: Mechanical suspension

b)Axle:FUWA

c)Tire:10.00-20/11.00.20/11R20/11R22.5;

d) Rims: 7.5/8.0-20;8.25-22.5

d) King pin:forged steel, 2" or 3.5", welded or bolt-in

e) Landing gear:JOST brand

3)Chassis Frame:

a) Twist lock: design 12 units ISO type twist locks on trailer for load container.

b) Main beam: high-tensile steel

c) Surface preparation: shot blast

d) Painting clour: as per client's requirement;

4) Brake system:

a) Double line air brake system with single air tank, standard connectors on

front bolster

b) Optional anti-lock brake system

5) Electrical system:12V or 24V with standard electrical equipment.

6) Accessories:

a)One or two Tool box (only box, no tools)

b)One or two Spare wheel holder (no spare tires and wheels).
