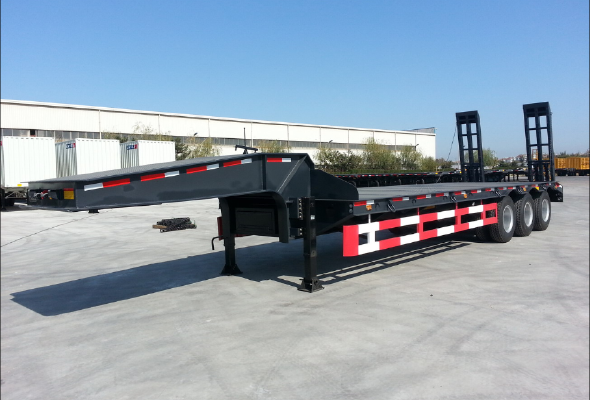

Quick Details

• Use:Truck Trailer

• Type:Semi-Trailer

• Material:Steel

• Certification:TS16949

• Size: 13000*3000*3420mm

• OEM No: cimc trailer

• Max Payload: 60T

• Place of Origin:Shandong, China (Mainland)

• Brand Name:CIMC

• Model Number: ZJV9358TD

• Axle: FUWA

• Color: Custom's Requirement

• King pin: 3.5"

Steel Structure:

Material: High strength low alloy steel with (Q345) 350 MPa yield strength is used for

welded I-beam and (Q235) 235 MPa yield strength is used for the fabricated parts .

Platform : 4mm thickness checked steel floor.

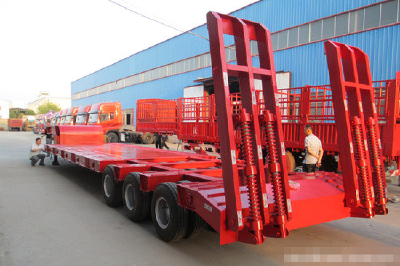

Loading Ramps: 2 units 650mm width hydraulic ramps

OEM Parts Configuration:

King Pin: 2” bolting king pin. Brand: JOST

Landing Gear: two speed road side winding with sand shoe. lifting capacity 24ton, stable capacity is 50ton. Brand: CIMC.

Suspension: CIMC heavy duty undermount tri-axle suspension with equalizers 8-leaf spring, Made in China.

Axles: 150x150 square axle with 16 tons capacity. Supplier & type: CIMC. Made in China.

Rims: 8.5x20, 10 Holes ISO, 12pieces 1pcs.

Tires: 12.00R20,12pieces 1pcs; China Famous Brand: Chinese famous brand.

Brake System: Dual air brake system. No ABS brake system. Made in china

Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.

Electrical System: 24 volt lighting system, 7-way receptacle .no e-mark and no SAE

certificate.

Others:

Spare Tire & Carrier: Equipped one set per chassis with one spare tire

Side Guard: Standard.

Tool Box: Equipped one set on the face of the gooseneck.

Painting: colored by customer’s request.

Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no, dead weight , year of manufacturing etc. to be fitted.

Painting: Color by customer’s requirement.
