- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC
- Model Number: CIMC low bed trailer
- Weight: 6000.000 kg
Quick Details
· Use:Other Trailers
· Place of Origin:Shandong, China (Mainland)
· Brand Name:CIMC
Specifications

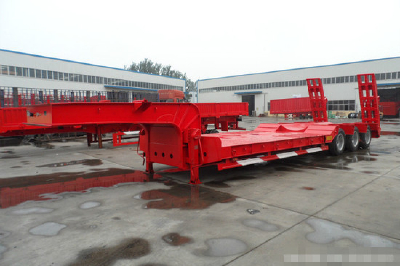

lowbed trailer with hydraulic goosenneck , it is one one line two axle, 16piece tires.and it can be length extendable
The Hydraulic Gooseneck Low Bed trailer is designed for stevedoring and transporting engineering machines and other equipment.
Dimension:
Length:14,500 mm (approximate)
Width: 3,000 mm (approximate)
Height of Platform: 850mm @ unload
Weight:
Max. Payload: 60,000kg
OEM Parts Configuration:
King Pin:3.5 exchangeable (bolting) king pin, Supplier:JOST. Made in China.
Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type:
JOST D200T , left operating. Made in China.
Rims: 6.5.-20. Made in China.
Tires: 8.25R20, 16 pieces; China Famous Brand: Linglong or Triangle etc. Choose by the factory. Made in China.
Suspension: Argo Bogie Suspensionone line two axles with 60 ton capacitty.
Made in China.
Brake System: Dual air brake system, WABCO relay emergency valve, none ABS brake system. Made in China.
Brake Chamber: 30/30 type on the rear two axlex,30 type on the first axle. Made in China.
Electrical System: 24 volt lighting system with modular wiring harness,7 way ISO receptacle infront of the front bolster, norms NO.1185. Chinese standard . No E-mark and SAE certificate. Made in China.
Others:
Spare Tire Carrier: Equipped two sets per chassis without spare tire
Side Guard:None
Reflector:2 triangle-shaped Red Reflectors at Rear. Reflectors tape each side.
Mudguards: PVC, 2 pieces.
Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard,Technical data plate including chassis No. year of manufacturing etc. to be fitted
Painting: Color by customers requirement.
This products is only one of our lowbed , we can provide many other kinds, which loading capactity can by 30ton,50ton , 100ton or more. Please give me your detailed request, I will give the best servise and products ASAP.
