Quick Details

• Use: Truck Trailer

• Type: Semi-Trailer

• Material: Steel

• Certification: TS16949

• Size: 13000*3000*2860mm

• OEM No.: cimc      trailer

• Max Payload: 60T

• Place of      Origin: Shandong, China (Mainland)

• Brand Name: CIMC

• Model      Number: ZJV9355TDPQD

• Axle: FUWA

• Suspension: Mechanical

Packaging & Delivery

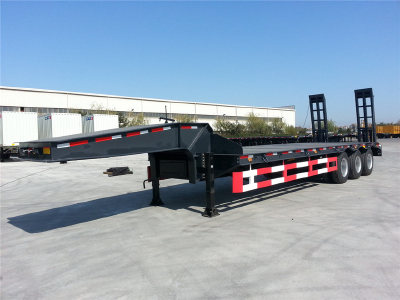

The trailer is designed for stevedoring and transporting engineer truck and loose cargos.

Steel Structure:

Material: High strength low alloy steel with (Q345) 350 MPa yield strength is used for

welded I-beam and (Q235) 235 MPa yield strength is used for the fabricated parts .

platform : 4mm thickness checked steel floor.

Loading Ramps: 2 units 650mm width spring ramps

OEM Parts Configuration:

King Pin: 2” bolting king pin. Brand: JOST

Landing Gear: two speed road side winding with sand shoe. lifting capacity 24ton, stable capacity is 50ton. Brand: Holland.

Suspension: Heavy duty undermount tri-axle suspension with equalizers 8-leaf spring, Made in China.

Axles: 150x150 square axle with 13 tons capacity. Brake: S420x180, Wheel fitting 10xM22x1.5 ISO/ PCD335/281.  Made in China.

Rims: 8.5x20, 10 Holes ISO, 12pieces 1pcs.

Tires: 12.00R20,12pieces 1pcs; China Famous Brand: Triangle or double star, Linglong.

Brake System: Dual air brake system . No ABS brake system. made in china

Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.

Electrical System: 24 volt lighting system, 7-way receptacle .no e-mark and no SAE

certificate.

Others:

Spare Tire & Carrier: Equipped one set per chassis with one spare tyre

Side Guard: Standard.

Water Tank: Equipped one 30L water tank under the gooseneck.

Tool Box: Equipped one set on the face of the gooseneck.

Painting: colored by customer’s request.

Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no , dead weight , year of manufacturing etc. to be fitted.

Painting: Color by customer’s requirement.
