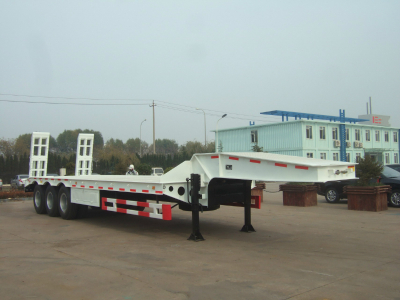

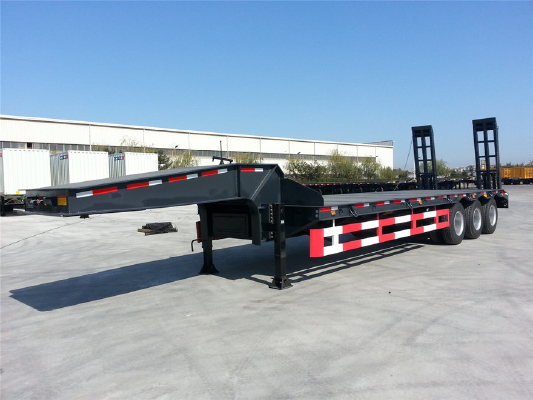

Quick Details

• Use: Truck Trailer

• Type: Semi-Trailer

• Material: Steel

• Certification: TS16949

• Size: 13000mm*3000mm*3400mm

• OEM No.: cimc number

• Max Payload: 60t or      more

• Place of      Origin: Shandong, China (Mainland)

• Brand Name: CIMC

• Model      Number: ZJV9658TD

• Color: As required

• Axle: FUWA Brand

• Tire: 11.00R20

• Landing Gear: JOST

Packaging & Delivery

Advantages at a glance:

a. High point loading duse to narrow cross member spacing;

b. Lashing rings and stanchion holes are prepared for safe transport of jumbo cargo;

c. Hydraulic gooseneck and ramp can be provided as customer requirement;

d. Diamond plate/wood flooring.

Dimension & Weight(Approx):

Total Length: 13,000mm±10mm (Ladder Folfed)

Width: 3,000 mm

Length of Loading Platform: approximate 8,615mm

Height of Loading Platform: 1,110mm ±10mm @ unload

King Pin Location: One positions on 500mm from the front face of the front bolster

Fifth Wheel Height: 1,350mm with the chassis level

Landing Gear location: 2,450mm behind the king pin

Tare Weight (Tolerance 0~-5%): approximate 10,600 kg

Payload: 60,000kg

Let us know if your have special cargo need professional solution.

Others:

Spare Tire Carrier: Equipped one set per chassis without spare tire.

Side Guard: None.

Tool Box: Equipped one set,Located in offset platform

Rear Loading Lamp: Width to be 650mm.

Painting: Anti-weather acrylic acid polyurethane paint, colored as customer’s requirement.

Marking: By customer’s requirement.
