- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC

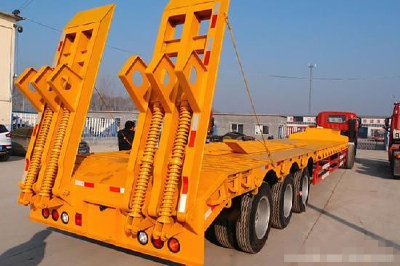

- Model Number: CIMC Low bed trailer With Argo Bogie Suspension(One Line Two Axles)
- Weight: 6000.000 kg
Quick Details
· Use:Other Trailers
· Place of Origin:Shandong, China (Mainland)
· Brand Name:CIMC
Specifications
1.High tensile steel
2.Less weight,more load
3.Lower price
4.we can supply 40T,50T,60T,70T,80T,90T,100T.low bed trailer
Dimension & Weight(Approx)
Total Length: 16,000 mm (Excluding Ladder)
Width: 3,000 mm
Height of Loading Platform:880mm @ unload
King Pin Location:One positions on 500mm from the front face of the front bolster
Fifth Wheel Height:1,270mm with the chassis level
Landing Gear location: 2,350mm behind the king pin
Axle spacer: 12,750mm 1,220mm
Tare Weight (Tolerance 0~-6%):approximate 11,000 kg
Payload:40,000kg
OEM Parts Configuration:
King Pin: 2 exchangeable king pin ,Brand: JOST. Made in China
Landing Gear: two speed road side winding with sand shoe.lifting capacity: 24ton,Type:JOST D200T. Left operating. Made in China
Suspension: Argo bogie suspensionOne Line Two Axles typeBrandYork. Famous brand Made in China.
Axle: the axle fitted and together to the argo bogie suspension, made in China.
Rims: 6.5-15, 16 pieces. Made in China
Tires: 8.25R15, 16 pieces. Made in China
Brake System: Dual air brake system, WABCO relay valve. No ABS brake system. Made in China
Brake chamber: Type 30/30 on all axles. Made in China
Electrical System: 24 volt lighting system, 7-way receptacle .ISO.
Front mark light: white ,
Side mark lamp: amber,
Rear lamp: white;
Turn signal lamp: amber.
Others:
Spare Tire & Carrier: Equipped one set per chassis without spare tire.
Side Guard: None.
Tool Box: Equipped one set
P Painting: Color by customers requirement.
Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, No Chinese character showed.
