Quick Details

·         Use:Truck Trailer

·         Type:Semi-Trailer

·         Material:Steel

·         Size:6, 014mm x 2, 180mm x 2, 349mm

·         Max Payload:12.2 m³

·         Place of Origin:Shandong, China (Mainland)

·         Brand Name:CIMC

·         Model Number:LP12CX

Packaging & Delivery

Delivery Detail:45 days after contract signed

Specifications

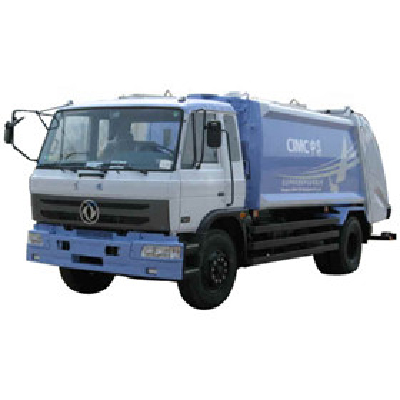

It is a newly developed refuse collection vehicle designed to meet the most contemporary sanitation industry's highest standard

Main performance:

1Automatic Control: Press one button to start automatic cycle operation.

2Fail-safe system: Arresting device to prevent risk of injury

COMPACTOR STRUTURE

 • Floor: 3.2mm

 • Roof: 2.3mm

 • Side Walls, Front Section (ejector area): 2.3mm

 • Side Walls, Rear Section (compaction area): 3.2mm

 TAILGATE AND HOPPER

 • Hopper Floor:8mm/BS700MC

 PACKER

 • Slide Face Plate: 2.6mm

 • Sweep Face Plate:4.5mm

 • Packer Edge Strip:25mm/16mm/16mm

 HYDRAULICS

 • Control Valves, Primary (Multi-way valve): “QT FLUID”

 • Oil Reservoir: 10 gallons

 • Filter: EF-178/1340 mesh suction strainer

 CYLINDERS

 • Ejector: 120mm bore x 105 mm rod x 3119 mm stroke

 • Slide: 63 mm bore x 40 mm rod x 770 mm stroke

 • Sweep: 63 mm bore x 40 mm rod x 430 mm stroke

 • Tailgate: 80mm bore x 70 mm rod x 564 mm stroke

 PERFORMANCE

 • Loading Cycle: Approx. 16 s

 HARDWARE

 • PLC controlling system

 OTHER OPTIONS AVAILABLE

 • Hopper work lights

 • Strobe light

 • Camera systems

 • Mud flaps

 • Toolbox
