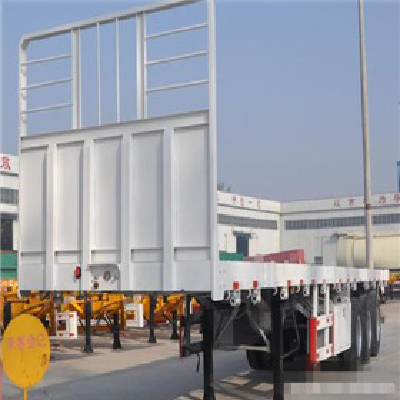

- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC
- Model Number: CIMC Flatbed trailer with tri axles FUWA or BPW truck trailer
- Weight: 6000.000 kg
Quick Details
· Use:Truck Trailer
· Type:Semi-Trailer
· Material:Steel
· Certification:TS16949
· Size:12489*2480*1530mm
· OEM No:cimc trailer
· Max Payload:40T
· Place of Origin:Shandong,China (Mainland)
· Brand Name:CIMC
· Model Number:ZJV9380TJZP
· Axle:FUWA
· Tire:12R22.5
· Landing Gear:JOST
Packaging & Delivery
Packing Details:By 40ft HC
Delivery Detail:30 days
parameter | dimension(mm) | length×width×height:12489×2480×1530 |
king pin setting(mm) | 1250 | |
fifth wheel height(mm) | 1200 | |
axle space(mm) | 8200 1400 | |
tare weight(kg) | 6,500 | |
payload(kg) | 40,000 | |
GVWR(kg) | 46,500 | |
fabric | main beam(mm) | 500,submerged arc welding |
flange and web(mm) | 14/8/16 | |
side rail | 160mm high fabricable “C” type channel. | |
cross member | fabricable “W” channel | |
floor | 3mm checker plate | |
lock | 8 retractable locks,4 fixed locks. | |
hook and hole | 12 cast steel hooks and 8 stick holes on each side of the platform | |
paint | primer top coat, polyurethane paint | |
OEM | landing gear | JOST/FW 19” ,option by CIMC factory |
kingpin | 2”JOST ,exchangeable | |
brake system | 30/30 type on each axle, WABCO brake valve | |
ABS | No | |
suspension | Bogie suspension with 18 leaf springs. | |
axle | FUWA 13T | |
tire | Triangle, type: 315/80R22.5 ,equip 9 per chassis | |
rim | 9.0-22.5,equip 13 per chassis | |
tool box | 1 set steel box,1m | |
spare tire carrier | 2 units per chassis | |
color | Red | |
others | “LONG VEHICLE” sign on the rear end. LED lights,equip side turn light. Main beam: stick “CIMC QINGDAO” logo Mud flap: stick “CIMC ” Nameplate:English model |
