Quick Details

Use:Truck Trailer

Type:Semi-Trailer

Material:Steel

Certification:ISO

Size:13m---16m

Max Payload:30-100 ton

Place of Origin:Shandong,China (Mainland)

Brand Name:CIMC

High Quality:Yellow

Packaging & Delivery

Specifications

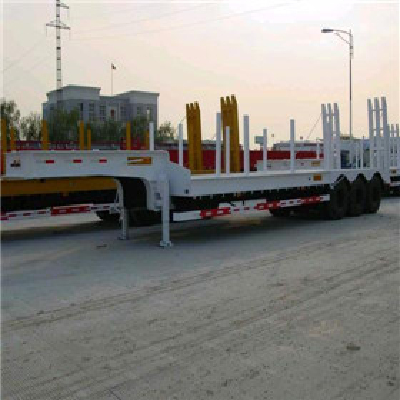

Low bed trailer
High Quality, More Safety

Low bed trailer

Specifications:

1) Dimensions and weight:
A) Nominal dimensions (L x W x H):13, 000 x 3, 000 x 1, 750mm
B) King pin height: 1,300mm
C) Laden height: 1, 200mm
D) King pin setting:500mm from rear face of front bolster
E) Max. Payload:59, 000kg
F) Tare weight: 9,000kg± 2%

2) Running system:
A) Suspension system: Leaf spring or airbag suspension
B) Axle: Various axles like BPW, YORK and FUWA with various bearings
D) Tire: Various brands of bias tires or radial tires.
E) King pin: Forged steel, 2" or 3.5", welded or bolt-in
F) Landing gear: 24T, 25T

3) Chassis:
A) Main beam: High-tensile steel
B) Surface preparation: Shot blast
C) Painting: Zinc-rich primer and modified urethane topcoat as customers' choices

4) Brake system:
A) Double line air brake system with single air tank, standard connectors on
Front bolster
B) Optional anti-lock brake system

5) Electrical system: Standard electrical equipment

6) Accessories: Rear loading ladder

Features:
1) Heavy duty and goose neck construction with loading ladder
2) All major structural steel parts of high-tensile steel
3) Entire chassis shot-blasted
4) Paint system comprising zinc rich primer and urethane topcoat
