- Size: 12,425 X 2,480 X 1,550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC
- Model Number: ZJV9361TJZ
- Weight: 35000.000 kg

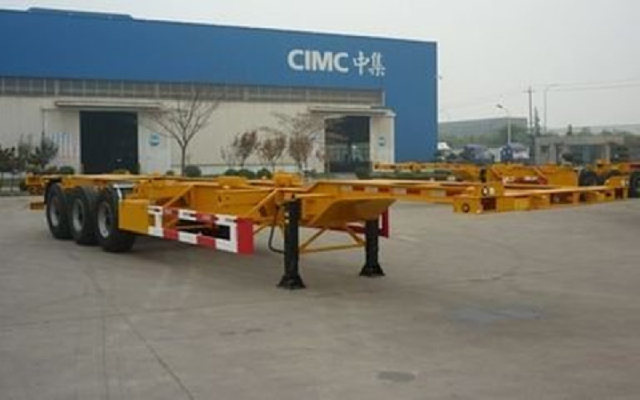

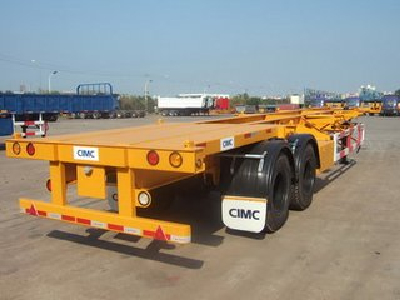

CIMC Container Chassis, 40FT Skeleton Semi Trailer
Dimension:
Overall length: 12,425mm
Overall width: 2,480mm
Overall height: 1,550mm
Capacity:
Load capacity: 40-60T
Running Gear:
Axle: FUWA axle 13 tons
Tire: 11R20-16PR, 12 units
Wheel rim: 8.0-20, 12 units
Twist lock: 12 units to delivery 1*40 ’ , 2*20 ’ , 1*20 ’ ISO Standard container
Landing leg: 28T BAOHUA Brand
Suspension: Spring suspension
Spare tire carrier: 2 units
Tool box: 1 unit
Technology
1:Main parts of the trailer is processed with advanced equipment,the longitudinal beam is welded by a wholly automatic tracking submerged are welding machine.
2:The wheel axle is assembled by the special equipment, the wheelbase is more precise.
3:All the spare parts are treated by shot blast, which can greatly increase the adhesion force of the paint.
4:The assembled parts is first painted, then assembled.
