- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC

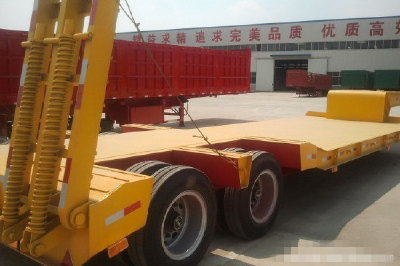

- Model Number: CIMC Concave Type Low bed Trailer
- Weight: 6000.000 kg
Quick Details
· Use:Truck Trailer
· Type:Semi-Trailer
· Material:Steel
· Certification:Other
· Place of Origin:Shandong, China
Specifications
30T, 45T,60T,70T, 2 axles or 3 axles ;Can be modified by customers requirements
30T, 45T,60T,70T, 2 axles or 3 axles ;Can be modified by customers requirements.
Total Length: 15,115 mm (Excluding Ladder)
Width: 3,000 mm or 3,200mm
Length of Front Loading Platform:6,000mm
Length of Rear Loading Platform:3,990mm
Height of Loading Platform: 1,150mm @ unload or 1,050 mm @unload
King Pin Location: One positions on 500mm from the front face of the front bolster
Fifth Wheel Height: 1300mm with the chassis level
Landing Gear location: 2500mm behind the king pin
Axle spacer: 10480mm 1310mm 1310mm for 3 axles
Tare Weight (Tolerance 0~-4%):approximate 10,000 kg to 13,000kg
Payload: 30,000kg or 45,000kg or 60,000kg or 70,000kg
(The above dimension will be adjusted according to the tractor specification.)
