- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC
- Model Number: CIMCAdvanced 3 axles flatbed trailer
- Weight: 6000.000 kg
Quick Details
· Use:Other Trailers
· Max Payload:40T
· Size:12500mm*2480mm*1530mm
· Place of Origin:China (Mainland)
· Brand Name:CIMC
Packaging & Delivery
Packing Details:In bulk or by 40ft containers wth rear cut
Delivery Detail:35 days after down payment received
Specifications

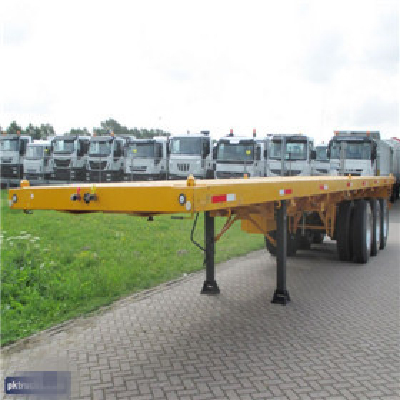

the trailer is designed for transporting 40ft and 20ft ISO conainers. Advanced structure and strong beam.
The terminal chassis is designed and manufactured to transport 1x20’, 2x20’, 1x40’ ISO containers or multiple bulk cargos.
Dimension:
Overall Length:12,489 mm
Overall Height:1,530mm
Overall Width:2,480mm
King Pin Location:Approx 1,050mm from the front face of the front bolster
Landing gear position:Approx 2,580 from the king pin.
Axle spacer:Approx 7,160mm 1,310mm 1,310mm.
(The above dimension will be adjusted according to the tractor specification. )
Weight:
Payload:40,000kg
Steel Structure:
Material:High strength low alloy steel with (Q345) 350 MPa yield strength is used for
welded I-beam and (Q235) 235 MPa yield strength is used for the fabricated parts .
OEM Parts Configuration:
King Pin:2”bolting king pin. Brand: JOST
Landing Gear:wo road side winding with sand shoe. Brand: Jost
Suspension: Mechanical suspension with 8 leaf springs.
Axles:150*150 Square axle with 13 tons capacity. Supplier & type: Fuwa. Made in China.
Rims: 8.25-22.5, 10 Holes ISO, 12pieces
Tires:11.00R22.5, Radial tyre, 12pieces; China Famous Brand: Triangle, Double star, etc.
Brake System:Dual air brake system. No ABS brake system. made in china
Brake chamber:Type 30/30 on the rear two axles, Type 30 on the front axle.
Electrical System:24 volt lighting system, 7-way receptacle.no e-mark and SAE Certificate.
Others:
Twist locks:equipped 12 container twist locks.
Tool box:equipped one tool box.
SpareTire & Carrier:equipped 2 tire carriers without spare tires.
Side Guard:Standard.
Painting:colored by customer’s request.
Marking:Qingdao CIMC Special Vehicle Co., Ltd.
