- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC
- Model Number: CIMC 45' Low deck trailer (Gooseneck) with 2 or 3 axles
- Weight: 6000.000 kg
Quick Details
· Use:Trailer Parts
· Structure:advanced
· Type:Semi-Trailer
· Components:Trailer Axles
· Material: Steel
· Place of Origin:China
· Brand Name:CIMC
· Max Payload:35-50Tons
Packaging & Delivery
Packing Details:Bulk packing with steel wire and winch
Specifications

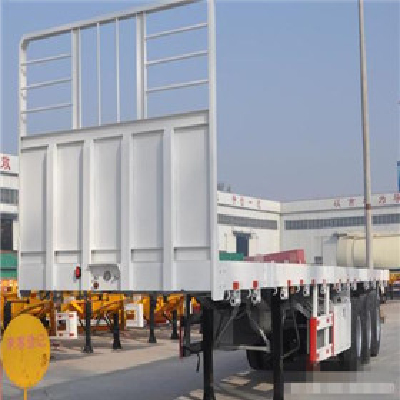

With Front Wall,and side sticker. Well work and good design. Payload is large.
Descriprions of Production:
The flatbed semi-trailer is designed for use in stevedoring and transporting cargo.
1.Material:
High strength low alloy steel Q345 with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
2.OEM Parts Configuration
(can be adjusted as per client's request):
--King Pin:SAE standard 2 exchangeable(bolted) king pin, Supplier: JOST.
--Twist Locks:Twelve (12) retractable ISO type twist locks.
--Landing Gear: Supplier: & Type: JOST D200T.
--Suspension:Mechanical suspension with 7/8 pieces leaf springs.
--Axles:150x150 square axle with 13 tons (or 15Tons) capacity.Supplier:FUWA or York. Made in China.
--Rims:8.0x22.5,10 Holes ISO
--Tires:11.00-20 or 11.00R20, China Famous Brand:Linglong or Triangle
or Jinguan,etc,Option by the factory.
--Brake System:WABCO Re 4 relay emergency valve,none ABS brake system
--Brake Chamber: T 30/30 type Chambers on the rear two axle, T 30 type Chambers on the front axle.
--Electrical System: One set of 7 hole standard cable; 24 volt lighting system with modular wiring harness:
