- Size: 12500*2500*1550
- Place of Origin: Shandong Qindao
- Brand Name: CIMC
- Model Number: CIMC 40ft flatbed trailer 2 axles with bogie suspension
- Weight: 6000.000 kg
Quick Details
·Use:Other Trailers
· OEM No:cimc trailer
· Max Payload:35T
· Size:40ft
· Place of Origin:Shandong,China (Mainland)
· Brand Name:CIMC
· Model Number:ZJV9483TJZP
· Product name:40ft flatbed trailer 2 axles with bogie suspension
Packaging & Delivery
Packaging Details: | By container or bulk vessel or RORO |
Delivery Detail: | 30 days |

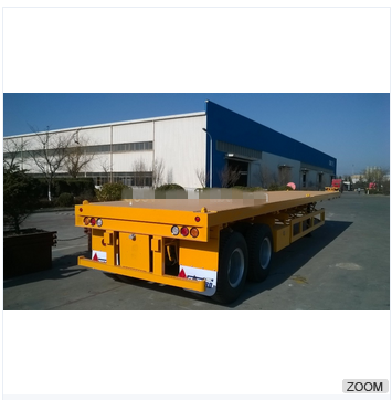

The trailer is designed for stevedoring and transporting 1x40’,1x 20’ or 2x20’ ISO Cargo Containers.
Dimension:
Length:12,404 mm
Width:2,480 mm
Height:1,526mm @ unload
King Pin Location:1000mm from the front face of the front bolster
Axle spacer:7,850mm 1,400mm
King Pin Height:1,290mm with the chassis level
Landing gear location: 2,420mm from the kingpin location
(Some of the above dimension will be adjusted according to the tractor specification. )
Weight:
Tare Weight (Tolerance 0~-4%):7,000 kg
Max. Payload:30,480 kg
Gross Vehicle Weight:37,480 kg
Steel Structure:
Material:High strength low alloy steel with Q345(350MPa) yield strength is used for welded I-beam and Q235(235MPa) yield strength steel is used for the fabricated parts.
OEM Parts Configuration:
King Pin:2”bolting king pin. Brand: JOST.
Twist Locks:Twelve(12) units retractable ISO type twist locks.
Landing Gear:2 speed road side winding with sand shoe, Lifting capacity 24T. Type:
JOST C200 , left operating.Made in China.
Suspension:Boggie type(Tandem) suspension;Assembled with frame. Loading capacity 24ton.Made in China.
Axles:150x150 square axle with 13 tons capacity. Brake:S420x180, Wheel fitting
10xM22x1.5 ISO/ PCD335/281. Supplier & type:FUWA. Made in China.. Made in China
Rims:8.25-22.5,10 Holes ISO, 8pieces.
Tires:11.00R22.5, 8 pieces. Chinese famouse brand ,choose by the factory.
Brake System:Dual air brake system, WABCO or Haldex relay emergency valve, none ABS system.
Brake chamber:Type 30/30 on the rear axle,Type 30 on the front axle.
Electrical System:24 volt lighting system with modular wiring harness ,7 way ISO receptacle infront of the front bolster, Chinese standard .
Tail/Stop light: Two, Red.
Rear turn signal light: Two, amber
License light: One, white
Front clearance/marker light, Reversing light, Side Lights,and Rear fog light.
Others:
Spare Tire Carrier:Equipped one set per chassis without spare tire
Side Guard:None
Tool Box:Equipped one set
Rope Hooks:11 pieces each side, total 22 pieces.
Reflactor:2-Nos triangle shaped Red Reflectors at Rear. 10 pieces Reflectors strip
(Conspicuity tape)each side.
Mudguards:PVC, 2 pieces..
Marking:Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate
including chassis no , dead weight , year of manufacturing etc. to be fitted
Painting:colored by customer’s request
NOTE:
1.All the details not mentioned above should be comply with Chinese standard.
2.These specifications are given as information. CIMC Qingdao have the right to
change them without previous notice.
