Quick Details

• Use:Other Trailers

• Max Payload 35T

• Size:40ft

• Place of Origin:China (Mainland)

• Brand Name:CIMC

• Model Number: ZJV9420TJZP

Packaging & Delivery

Packing Details:By container or in bulk

Delivery Detail:30 days

Specifications

1.Best design suit bad road condition

Dimension:

Length: 12,404 mm ± 10mm (approximate)

Width: 2,480 mm ± 10mm (including mud guard)

Height: 1,476mm @ unload (without twist locks)

King Pin Location: 1000 mm from the front face of the front bolster (No confirm).

Axle spacer: 7390mm 1310mm 1310mm

Fifth Wheel Height: 1,230mm with the chassis level (No confirm).

Landing Gear location: 2,420mm behind the king pin location (No confirm).

(The above dimension will be adjusted according to the tractor specification.)

Weight:

Tare Weight: approximate 7,450 kg

Max. Payload: 35,000 kg

OEM Parts Configuration:

King Pin: 2” exchangeable (bolted) king pin, supplier & type: JOST.

Twist Locks: Twelve (12) retractable ISO type twist locks.

Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type: JOST

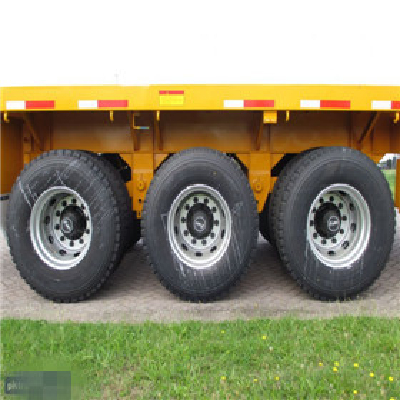

Suspension: Mechanical suspension with 13 pieces leaf springs

Axles: Square axle with 13 tons capacity ,CIMC Brand, Made in China.

Rims: 11.75×22.5, 10 Holes ISO, 6 pieces.

Tires: 385/65R22.5, Radial Tires, 6 pieces; China Famous Brand.

Brake System: Dual air brake system, 2*40 Liters Air Pressure Tanks; WABCO relay emergency valve, none

ABS brake system .

Brake Chamber: 30/30 type on rear two axles, 30 type on front axle

Electrical System: Complete 24V installation with modular wiring harness.

Accessories:

Spare Tire Carrier: Equipped one set per chassis with one set spare tire.

Side Guard: None Steel Side Protection.

Tool Box: Equipped one set.

Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. to be fitted

Painting: Color by customer’s requirement.

Note:

1) All the details not mentioned above should comply with Chinese regulations.

2) These specifications are given as information. CIMC reserves its right to change them without previous notice.
