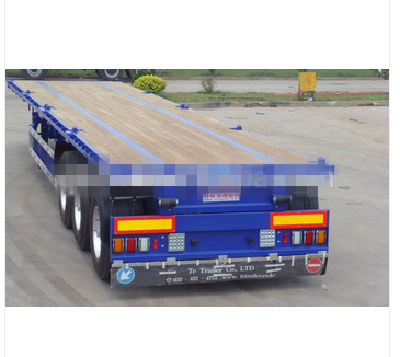

Quick Details

·         Use:Truck Trailer

·         Type:Semi-Trailer

·         Material:Steel

·         Certification:TS16949

·         Size:12393*2480*1530mm

·         OEM No.:cimc trailer

·         Max Payload:40T

·         Place of Origin:Shandong,China (Mainland)

·         Brand Name:CIMC

·         Model Number:ZJV9406TJZ

·         Axle:FUWA

·         Suspension:Mechanical

Packaging & Delivery

 SPECIFICATIONS

 Length: Approx12,393mm

 Width:Approx2,480 mm

 Height:Approx1460mm@unload

 King Pin Location: Approx933mm from the front face of the front bolster

 Landing gear position: Approx2,323mm from the king pin

 Axle spacer:Approx7,626mm 1,300mm 1,300mm

 King Pin Height:Approx1,146mm with the chassis level

 Steel Structure:

 Material:High strength low alloy steel (Q345) with 350 MPa yield strength is used for hot rolled I-beam and fabricated parts.

 OEM Parts Configuration:

 King Pin: JOST 2” Bolting king pin.

 Landing Gear:JOST C200T.

 Suspension: Steel suspension with 7 pieces of leaf spring.

 Axles: 12T round axle 10holes, 3 pieces

 Rims: 22.5x11.75,steel, 6 pieces.

 Tires: 385/65R22.5-16PR,6 pieces.

 Twist lock:ISO type twist locks, 12units

 Brake system: WABCO,ABS brake, 2S/2M

 Electric system:24V Chinese standerd

 Platform:Floor bed bolt with laminated wood floor.

 Others:

 Side Guard:STEEL

 Tool Box:One

 SpareTire & Carrier:NONE

 Painting:BLUE

 Marking:Qingdao CIMC standard

 NOTE:All the details not mentioned above should be comply with Chinese standard.
