Quick Details

·Use:Trailer Parts

·Design:good

 Type:Semi-Trailer

·Components:Trailer Axles

·Material:Steel

·Place of Origin:China

·Brand Name:CIMC

·Max Payload:40-50Tons

Packaging & Delivery

Packaging Details:Bulk packing with steel wire and winch

Specifications

1. 3 axle with Single tyre.
2. With oil tank, can be well meet African market;

General Descriprions of Production:

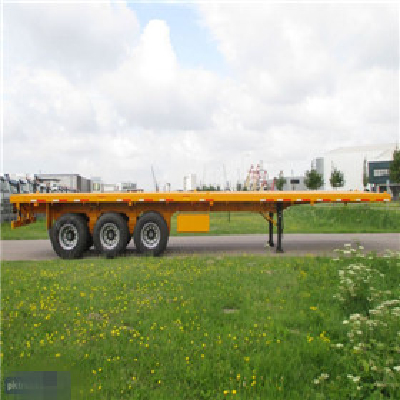

The Flatbed trailer is designed for use in stevedoring and transporting of 1x20 ft ISO cargo containers and bulk cargos.

1) Dimensions and weight (can be adjustable based on need):

a) Length:12,395 mm

b) Width: 2,490 mm  (including mud guard)

c) Height: 1,5110mm @ unload

d) Axle spacer: 6790mm 1310mm 1310mm

e) Fifth Wheel Height: 1256mm with the chassis level.

2) Running system:

a) Suspension system: Mechanical suspension

b) Axle:FUWA

c) Tire:385/65R22.5, 6units

d) Rims: 11.75×22.5, 6units

d) King pin: forged steel, 2" or 3.5",welded or bolt-in

e) Landing gear:JOST brand

3) Chassis:

a) Twist lock: design 12 units ISO type twist locks on trailer for load container.

b) Main beam: high-tensile steel

c) Surface preparation: shot blast

d) Painting clour: as per client's requirement;

4) Brake system:

a) Double line air brake system with single air tank,standard connectors on

front bolster

b) Optional anti-lock brake system

5) Electrical system:24V with standard electrical equipment.

6) Accessories:

a)One Tool box (only box, stanard tools)

b)One Spare wheel holder (no spare tires and wheels).
