Quick Details

·         Use:Trailer Parts

·         Type:Semi-Trailer

·         Components:Trailer Axles

·         Material:Steel

·         Place of Origin:China

·         Brand Name:CIMC

·         Max Payload:40-50Tons

·         Design:advanced

Packaging & Delivery

Bulk packing with steel wire and winch or with 40’H container

Specifications

Rear part by cutting way, then with bolt and welding connection.
,then shipping with 40'H container packing.

Descriprions of Production:

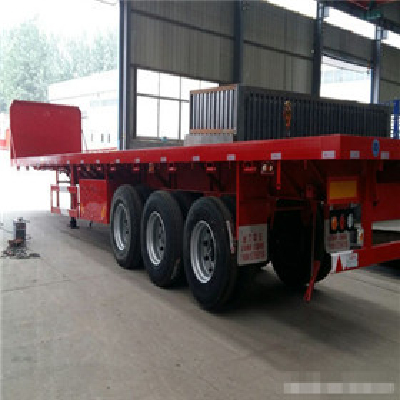

The Flatbed trailer is designed for use in stevedoring and transporting of 1x20 ft,1x40 ft ISO cargo containers and bulk cargos.

1) Dimensions and weight (can be adjustable based on need):

2) Running system:

a) Suspension system:Mechanical suspension

b) Axle:FUWA

c) Tire:10.00-20/11.00.20/11R20/11R22.5;

d) Rims: 7.5/8.0-20

d) King pin: forged steel, 2" or 3.5", welded or bolt-in

e) Landing gear:JOST brand

3) Chassis frame:

a) Twist lock: design 12 units ISO type twist locks on trailer for load container.

b) Main beam: high-tensile steel

c) Surface preparation: shot blast

d) Painting clour: as per client's requirement;

4) Brake system:

a) Double line air brake system with single air tank,standard connectors on

front bolster

b) Optional anti-lock brake system

5) Electrical system:24V with standard electrical equipment.

6) Accessories:

a)One Tool box (only box, no tools)

b)One Spare wheel holder (no spare tires and wheels).
