CIMC 20ft Skeleton Container Semi Trailer

Specifications

Tear Weight:6200kg

Payload:40000kg

Total weight:46200kg

Overall Length:12355mm

Overall width:2490mm

Overall height:1480mm

Wheel track:1830mm

Wheel base:7900 1310mm

Standard Specifications Trailer Frame Structure

Heavy duty extra & extra durability designed opting for high tensile steel

Q345 welded by automated submerged MIG or ARC process

MAIN I BEAM: Height 500mm

Top flange width 146mm and its thickness 14mm Middle flange thickness 8mm Bottom flange width 140mm and its thickness 16mm high tensile steel Q345

SIDE BEAM: "C " CHANNEL Height 180mm x width 68mm x thickness 7mm , high tensile steel Q235

TRAILER FRONT SIDE CHANNEL:

Height 180mm x width 68mm x thickness7mm , high tensile steel Q235 TRAILER REAR SIDE CHANNEL:

Height 250mm x width 78mm x thickness7mm , high tensile steel Q235 CROSS MEMBER: "C" CHANNELS Height 100mm x width 37mm x thickness 3mm high tensile steel Q235 No. of pcs used in one trailer: 17

cross member at the locks :Height 160mm x width 63mm x thickness 6.5mm,

high tensile steel Q235 No. of pcs used in one trailer: 6

Floor:

Chequered steel sheet 3mm thickness.

Axles;

2 units of BPW 14 ton axle. BPW Meizhou Axle Co Ltd, Xietian Chengdong

Town, Meixian Meizhou, Guangdong China

Suspension

Mechanical Tandem 2 axles suspension BAOHUA with equalizer with 10 leafs.

Leaf spring:10 leaves springs, 16mm x 90mm or 13x90mm

Kingpin:

1 unit of 2 inch SAE standard welded and Bolt on. JOST(China) Auto

Component Co. Ltd, 888 Hanyuang Road Wuhan China

Landing gear

Two -speed, manual operating, heavy duty landing gear JOST, lifting capacity

is 28Ton & static capacity is 72ton dead load. JOST (Shanghai) Auto

Component Co. Ltd or FUWA Landing gear,it's lifting capacity is

28Ton ,& static capacity is 72ton dead load.

Wheel rim:9 units size 9.0x22.5 Rim for tubeless tyres Zhengxing brand

Tyre:9 units of 315/80 R22.5 tyre, Linglong or Hantai brand

Twist lock:

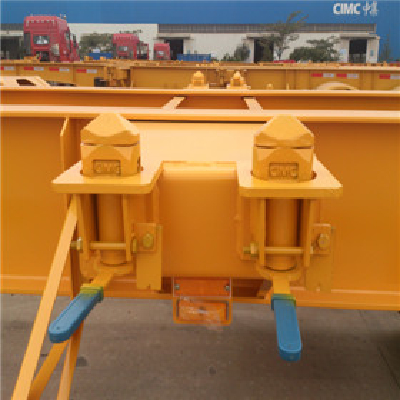

12 units of ISO standard-twist lock for 1x20ft; 2x20ft; 1x40ft container, the

central locks can be laid down.

Spare wheel carrier:2 set of Spare wheel carrier including a riser

Pneumatic braking system:

A system with emergency brake & parking brake, Dual line air brake, piggy

back spring on all axles, two units of WABCO RE 6 relay valve, 4 units of T

30/30 spring brake chamber; 2 units of T 30 brake chamber, two unit of 40 L

air tank; two unit of standard copper air-connector (WABCO)Guangdong FUWA Engineering Manufacturing Co. Ltd.

Electrical system

1 unit of JAEGER POWAY, 24 v 7-pin ISO 1185 standard socket; tail lamp

with turn signal, brake light & reflector, side lamp etc. One set of 7 core

standard cable.

Painting

Sand blasting processing on rust-proof protection, one coat of anticorrosive

primer, two coats of finish urethane paint, Color as customer choice

Accessory

ONE TOOLING BOX WITH A SET OF STANDARD TRAILER TOLL

ron wall

On the front side of trailer, iron wall sizes are height 1372mm, width 2490mm

Storage box for U Iron

To store 28 pcs of U iron

Height x width = 127 x 63.5mm

Length 1220mm

Thickness = 5mm

Standard Attachments

Reflectors, side fastening hooks, water tank 45LTr, Hitch (towing hook),

mudguard and fire extinguisher place
