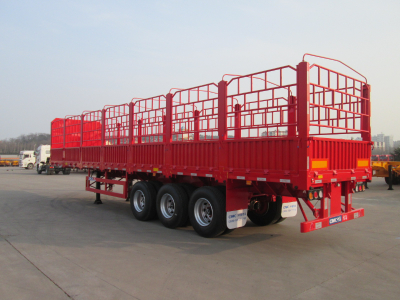

12.4M Three-axle Stake Semi Trailer

Dimension & Weight （ approx ） :

Total Length: 12,400mm

Width: 2,500 mm

Height: 3,600mm

Height of dropside: 600mm

Height of fence: 400mm 400mm

Tare Weight (Tolerance 0~-5%): approximate 7800kg

Payload: 40,000kg

The above dimension will be adjusted according to the tractor specification. )

OEM Parts Configuration:

King Pin: 3.5” exchangeable king pin, Supplier & type: JOST KZ1412.

Landing Gear: JOST C200T. Made in China.

Suspension: Mechanical suspension with 8 leaf spring.

Axles: 13 tons capacity . Supplier & type: FUWA. Made in China. 。

Rims: 8.25-22.5 , 10 Holes ISO, 12 pieces.

Tires: 11.00R22.5-16PR , 12 pieces, Triangle Brand.

Brake System: Dual air brake system, WABCO relay emergency valve , none ABS brake system.

Brake Chamber: 30/30 type on rear axle, 30 type on front axle

Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.

Side Lights: reflectors (orange);

Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white).

Others:

Spare Tire Carrier: Two spare carriers without spare tire. 。

Side Guard: Standard.

Tool Box: One , standard.

Painting: By customer’s requirement.

Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. to be fitted

Note:

All the details not mentioned above should comply with Chinese regulations.

CIMC does NOT take any responsibility on the trailer’s registration in the terminal country.
