Quick Details

• Use: Other Trailers

• Place of      Origin: Shandong, China (Mainland)

• Brand Name: CIMC

Packaging & Delivery

Packing Details:In container or 3 units in one bundle

Specifications

1.High tensile steel
2.Less weight,more load.
3.Lower price, High quality

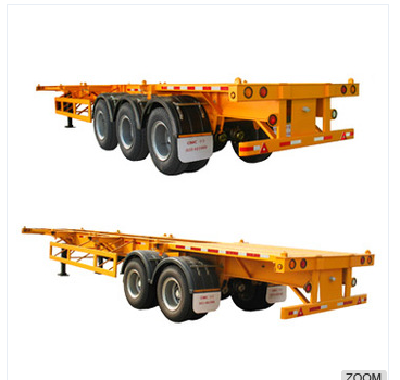

Container Chassis (Double-Axle / Tri-Axle)

Specifications:
1) Dimensions and weight:
a) Nominal dimensions (L x W x H): 12,250 x 2,440 x 1,450mm
b) King pin height: 1,200mm
c) King pin setting: 1,000mm from rear face of front bolster
d) Max. payload: 40,000kg / 45,000kg
e) Tare weight: 4,400kg±2% / 5,500kg±2%
2) Running system:
a) Suspension system: leaf spring or airbag suspension
b) Axle: various axles like BPW, YORK and FUWA with various bearings
c) Tire: various brands of bias tires or radial tires
d) King pin: forged steel, 2" or 3.5", welded or bolt-in
e) Landing gear: 24T, 25T
3) Chassis:
a) Provides 8 or 12 retractable type twist locks
b) Main beam: high-tensile steel
c) Surface preparation: shot blast
d) Painting: zinc-rich primer and modified urethane topcoat as customers' choices.
4) Brake system:
a) Double line air brake system with single air tank, standard connectors on
front bolster
b) Optional anti-lock brake system
5) Electrical system: standard electrical equipment
6) Accessories:
a) Tool box (box only)
b) Spare wheel holder (no spare tires and wheels).
