- Size: 13000*3000*3180 mm
- Place of Origin: SHANDONG
- Brand Name: CIMC

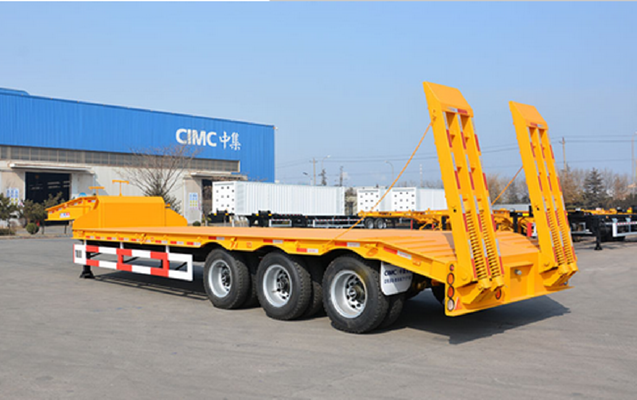

- Model Number: 3 axles Gooseneck extendable low bed semi trailer
- Weight: 6000.000 kg
Product Description
Overall Dimension(Lx W x H)(mm) | 13000*3000*1650 |
Function | Transport excavator, large machines etc. |
Loading Weight(KG) | 40000-60000kg |
Axle Brand | FUWA 13 Ton |
Axle Number | Three |
Suspension system | Leaf spring suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 10mm. |
Platform plate | 4mm Diamond plate |
Tire Type and quantity | 11.00R20 12units |
Traction Pin | 90mm/50mm |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | JOST 28Ton |
Brake system | Dual Line braking system |
Brake air chamber | Two double and two single chamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | According to customer’s requirement |
Packing | Polish with wax before shipping |
